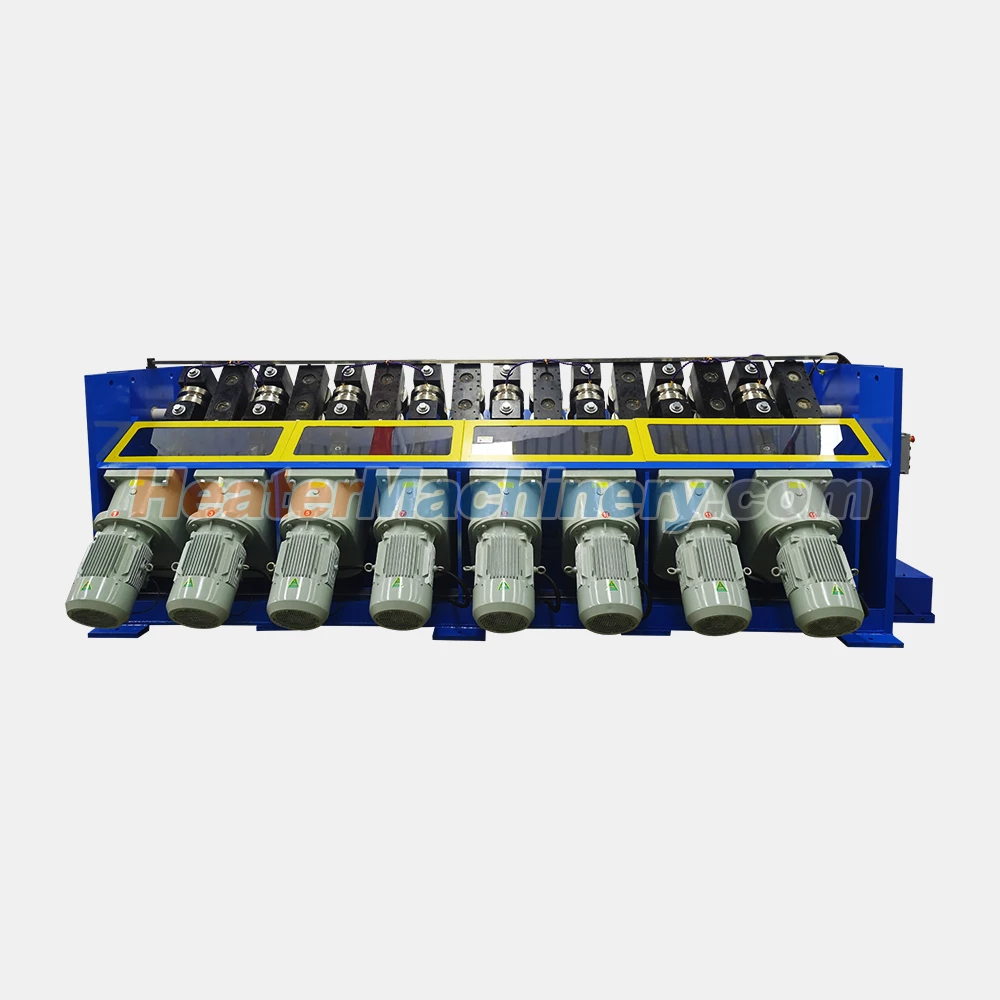

Cable Heavy Duty Roll Reducing Machine

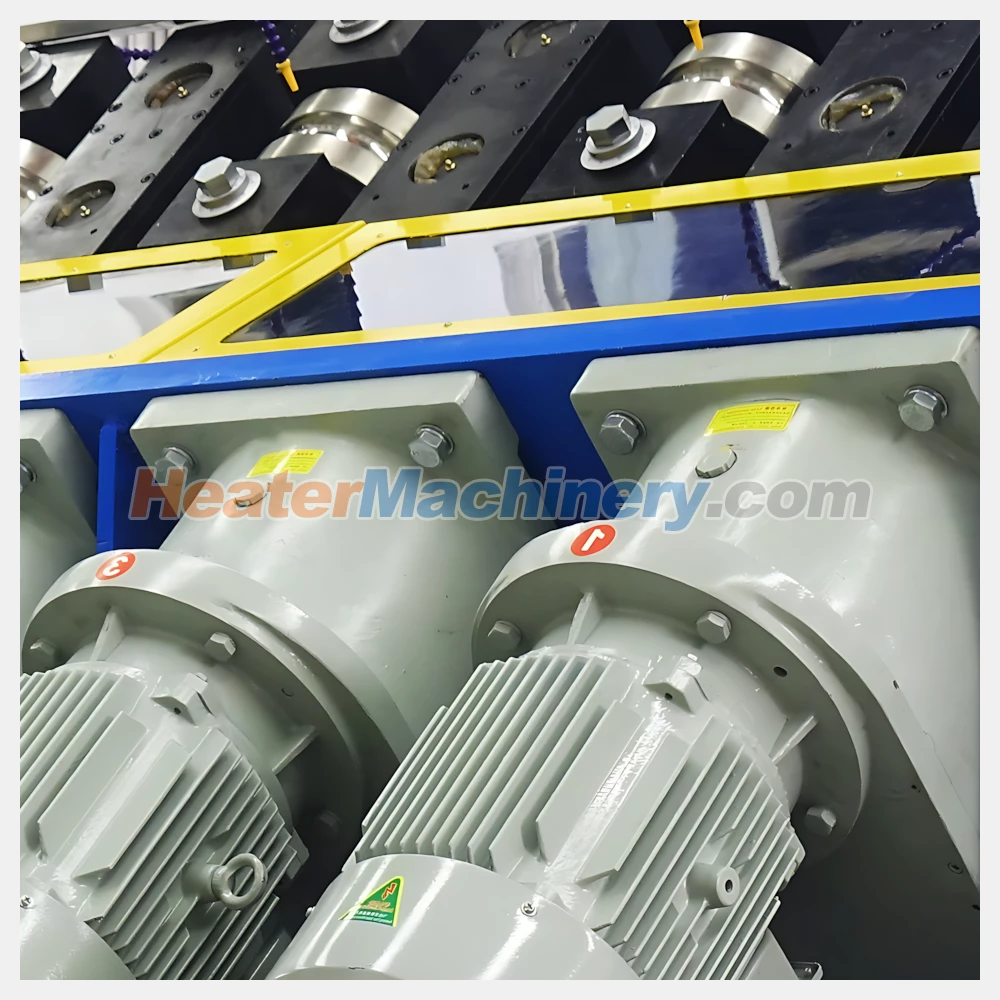

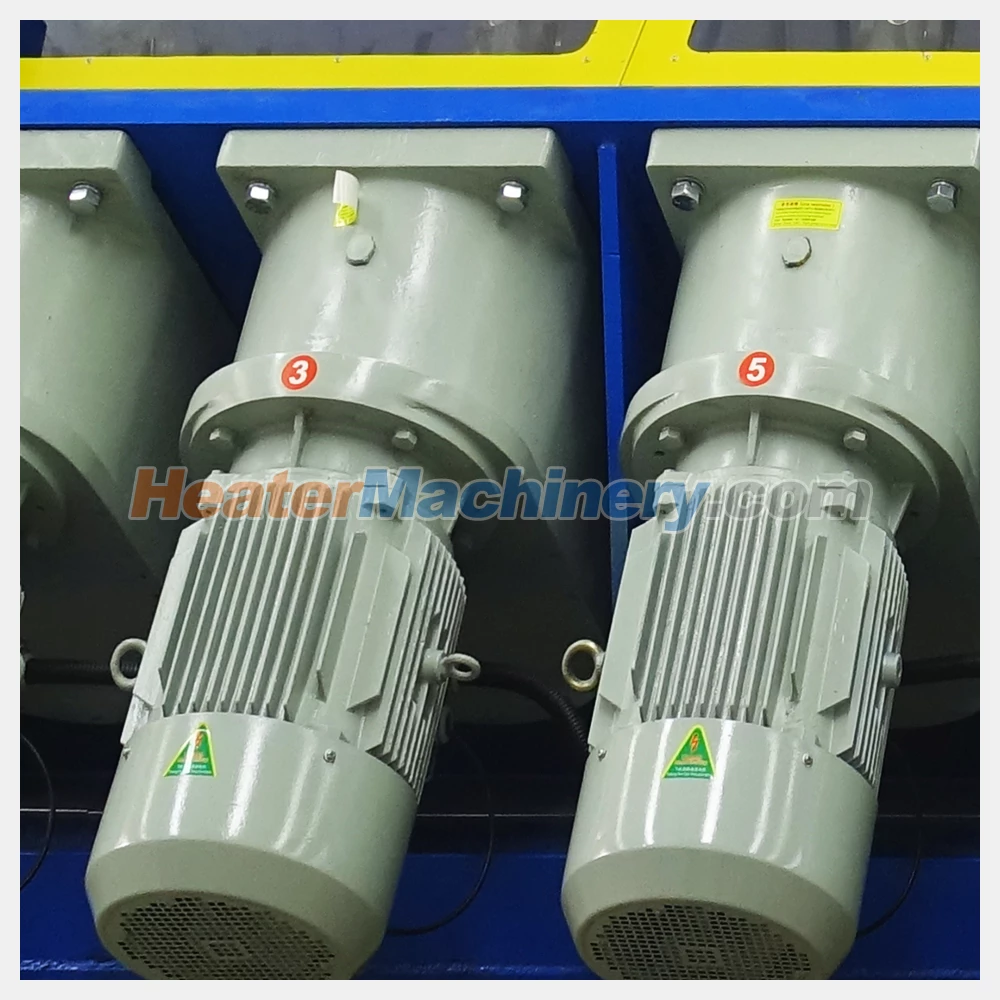

The HM-RRB4 Cable Heavy Duty Roll Reducing Machine is designed for large-diameter, high-density, and long-length pipe reduction. Built with a reinforced double Cardan shaft, high-power motor, and precision bearings, this machine offers enhanced torque and strength to efficiently compress thick-walled tubes. It achieves a one-time reduction of up to 7mm within a certain diameter range, eliminating the need for intermediate annealing.

Features:

• Optimized for Heavy-Duty Applications – Ideal for mineral cables, large-diameter tubes, and high-density pipes.

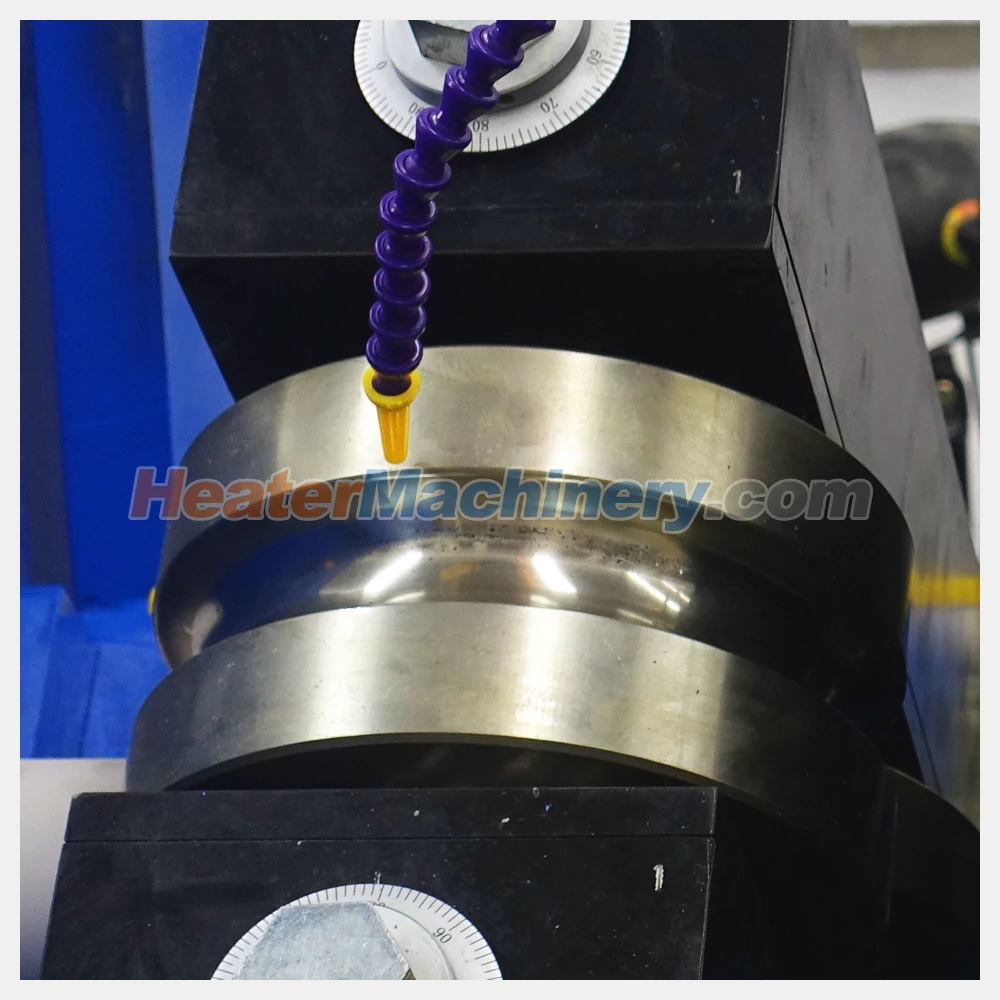

• Robust Construction – Steel-welded frame and precision-machined roll assembly ensure durability.
• Versatile Shrinking Options – Supports 8 to 20 roller group configurations for flexible tube compression.
• Adjustable Speed Control – Ranges from 2 to 20 meters per minute, with equal-speed and unequal-speed transmission options.
• Automatic Production Line Integration – Compatible with vertical shrink-tube installation to save production space.

Technical Specifications:

• Recommended Pipe Materials: Copper, iron, stainless steel (Φ8-70mm diameter).
• Tube Length Range: 150mm to unlimited length.
• Roller Groups: 8, 12, 14, 16, 18, 20 groups (customizable).

Applications:

• Round heater tube reduction, suitable for cable heaters and industrial heating elements.
