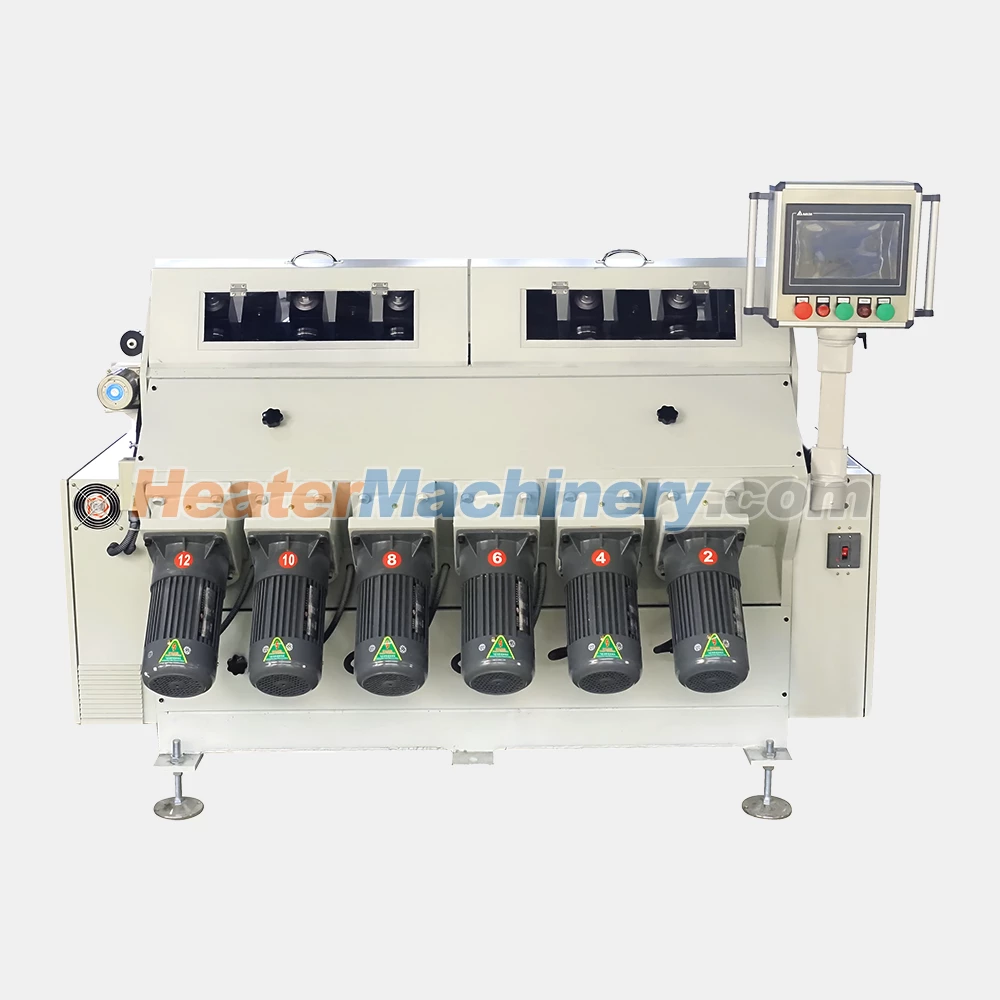

Double Cardan Shaft Roll Reducing Machine

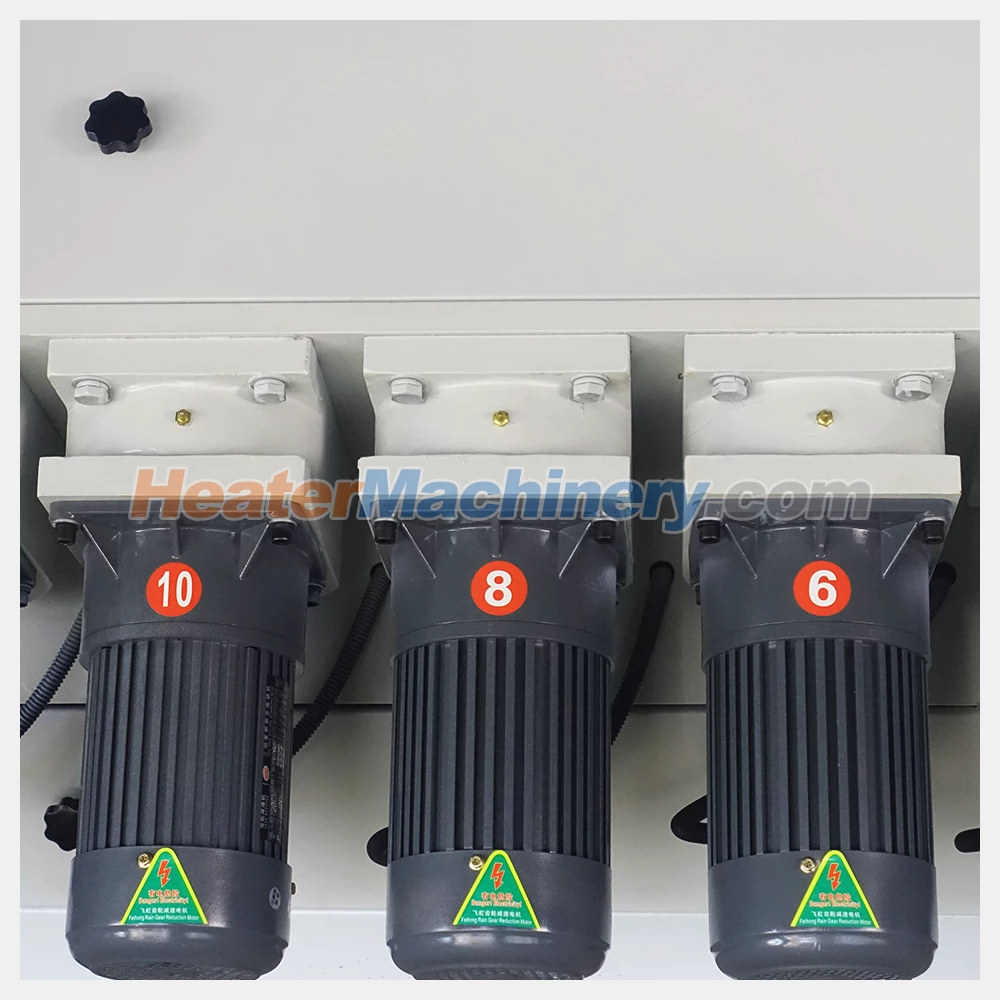

The HM-RRB1 Double Cardan Shaft Roll Reducing Machine is an upgraded version based on the HM-RRA2, featuring an enhanced transmission structure. It utilizes a gearbox with 8, 12, 16, or 18 sets of gears, connected to the motor to increase torque and improve overall strength. This machine is designed to compress larger tube diameters and longer tubes, making it an ideal choice for tubular heater production.

Functions:

• Reduces tube diameter to increase heater density.

Features:

• Low power consumption with minimal noise.

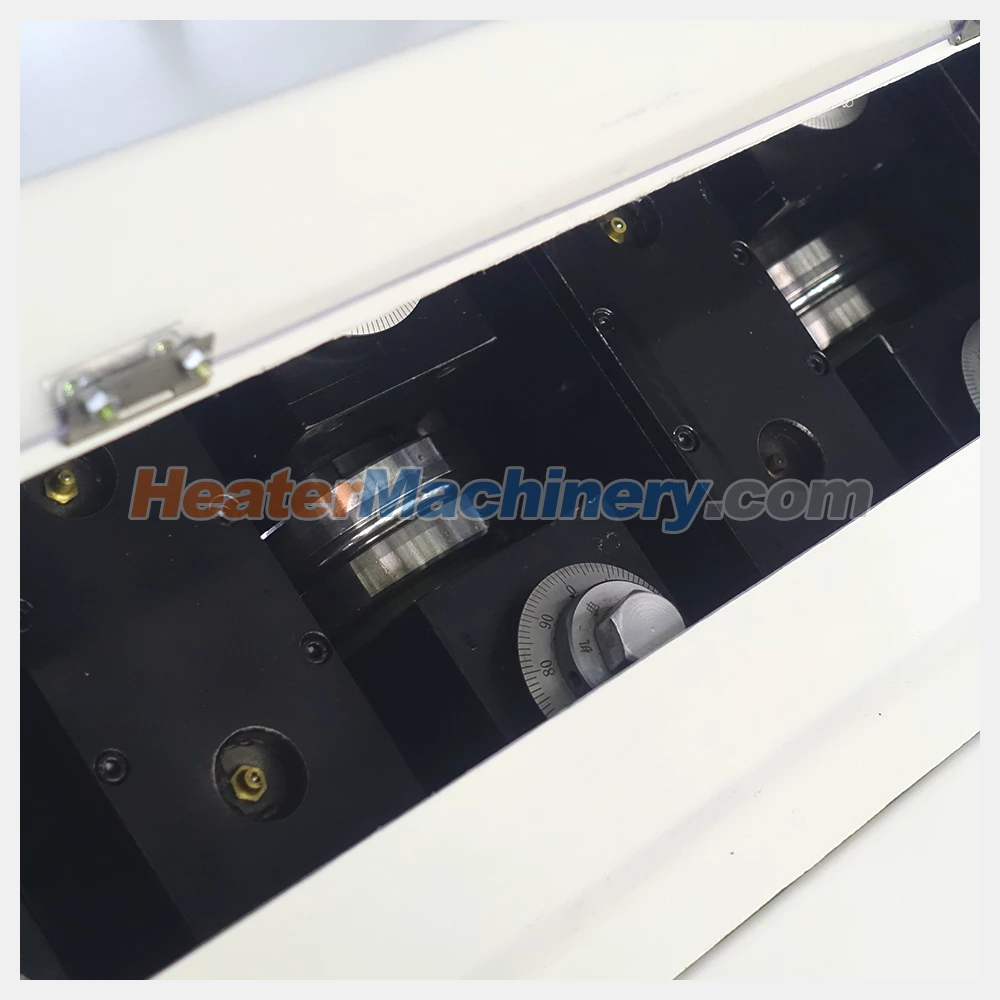

• Compatible with various tube diameters by changing rollers or roll assemblies.
• Supports Φ4-Φ9.5mm tubes, with a recommended maximum length of 2 meters for optimal equipment lifespan.
• Suitable for copper, aluminum, iron, and stainless steel round tubes.
• Adjustable shrinking speed: uniform or non-uniform (customizable).

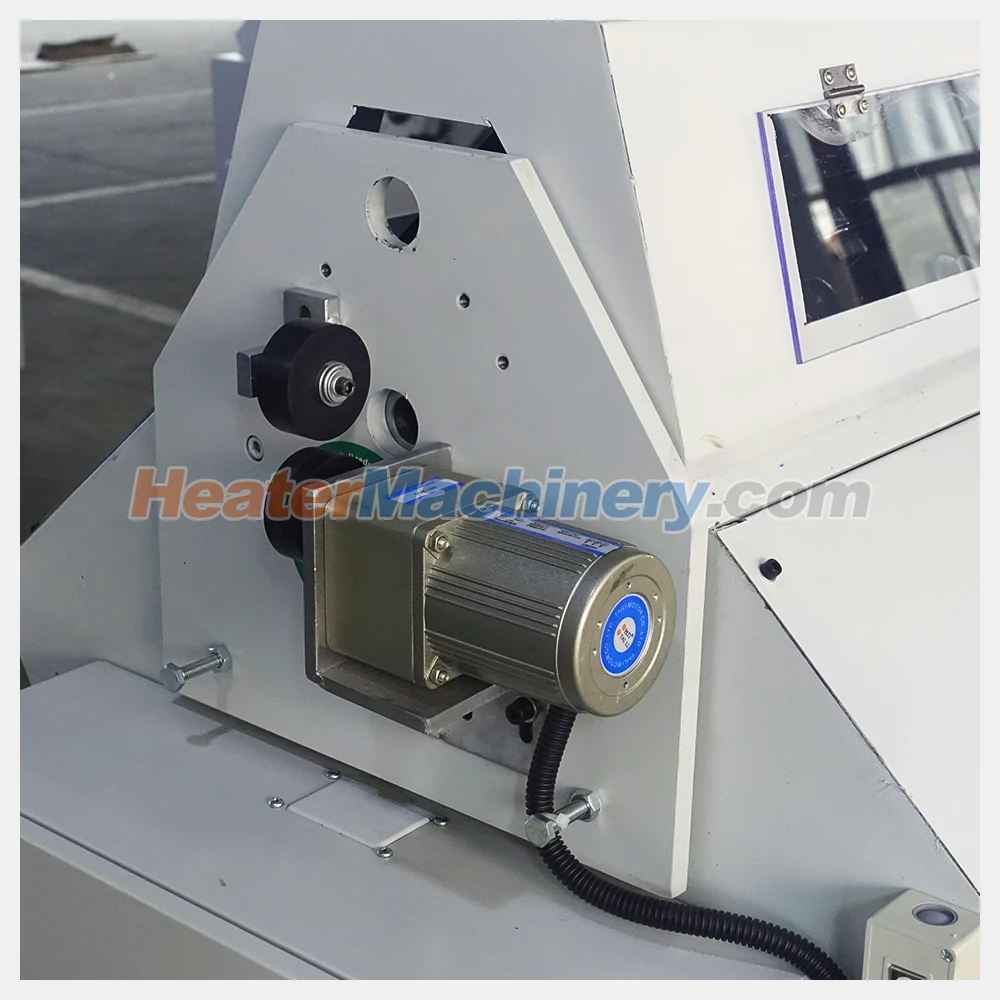

• Can integrate with feeding machines to improve efficiency.
• Compatible with marking mechanisms for branding heaters.

Applications:

• Designed for round heater tube reduction, including tubular heaters.
