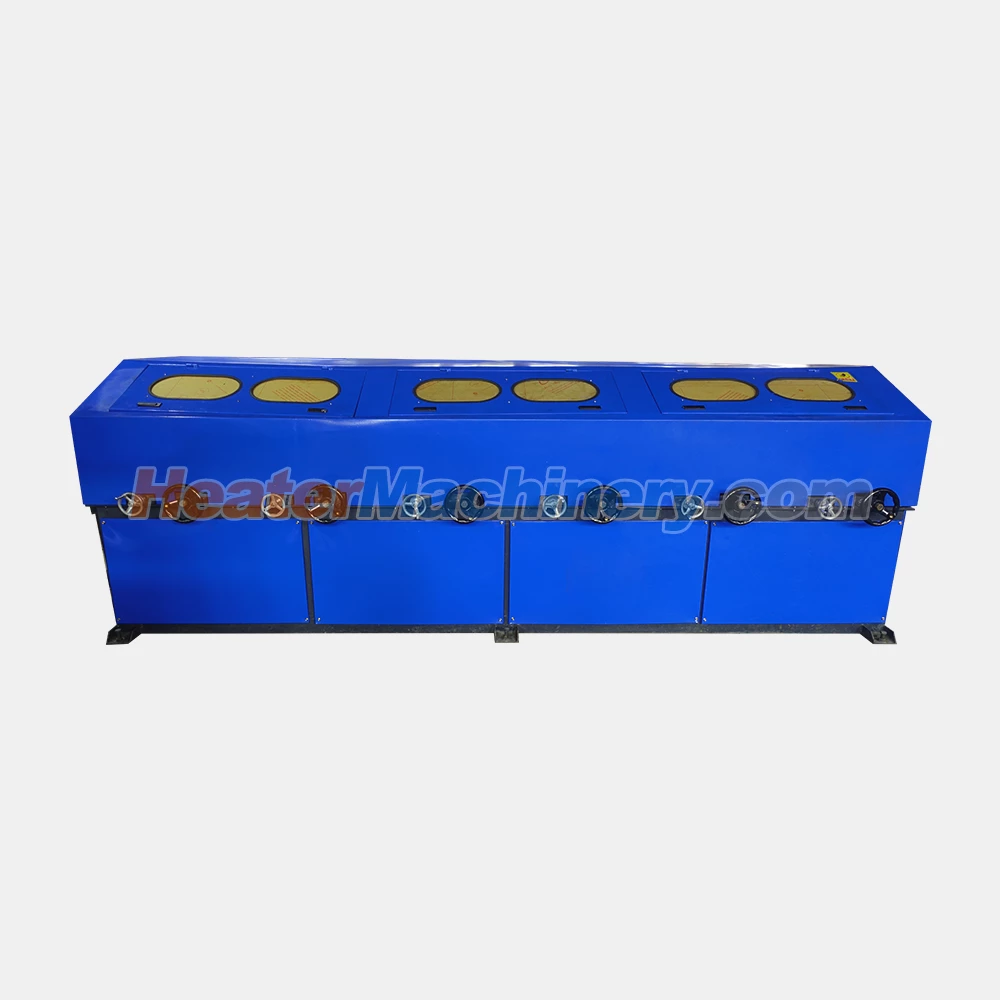

HM-PM8

Eight Groups Polishing Machine

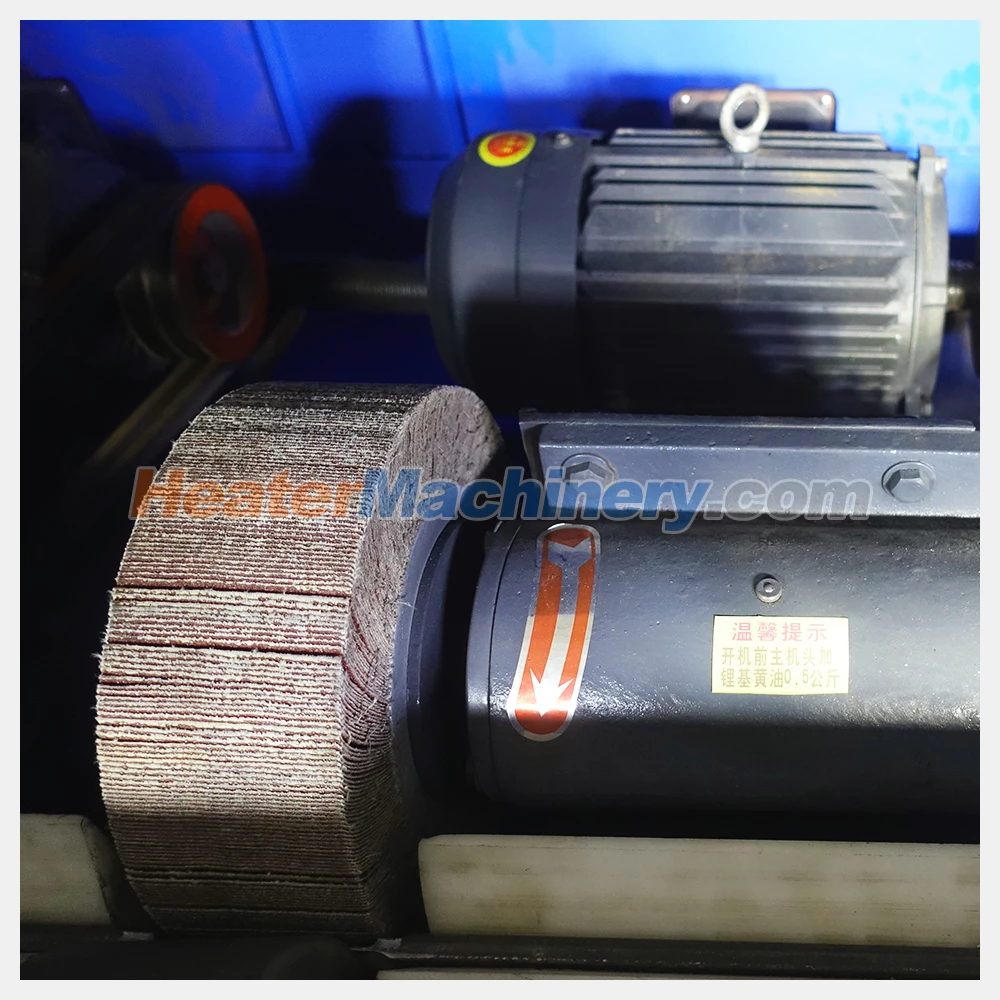

HM-PM8 Eight Groups Polishing Machine Motor

How to use HM-PM8 Eight Groups Polishing Machine

Specifications

Additional information

Model	HM-PM8
Tube Shape	Circular Tube
Min Diameter	4mm
Max Diameter	30mm
Min Length	300mm
Max Length	6000mm

Description

The HM-PM8 Eight Groups Polishing Machine is designed to meet various surface finishing requirements for heater tubes. With 1 to 8 buffing groups available, this machine ensures high-speed polishing driven by a motorized system. The adjustable polishing wheel axis allows flexibility for different tube diameters, making it ideal for precision polishing in heater manufacturing.

Features:

Customizable Buffing Groups – Choose from 1 to 8 polishing stations based on production needs.
High-Speed Motorized Polishing – Ensures a smooth and uniform surface finish.
Adjustable Diameter Compatibility – Supports Φ4mm to Φ30mm tubes.
Large Processing Capacity – Up to 8000m-9000m per 8-hour shift.
Durable & Efficient – Built for industrial heating element manufacturing.

Technical Specifications:

Tube Diameter Range: Φ4-Φ30mm
Tube Length Range: 300-6000mm
Productivity: 8000m-9000m per 8 hours
Power Supply: 380V/50Hz
Machine Size: 4800×1200×1100mm
Weight: 300KG-3000KG

Applications:

Polishing heater tubes for cartridge heaters, tubular heaters, and industrial heating elements.

– These specifications are based on the “standard specifications” or “with certain optional equipment.”
– The above specifications are subject to change without notice for quality improvement, and the video, illustrations and photos on this page may differ slightly from the actual product in terms of color.
