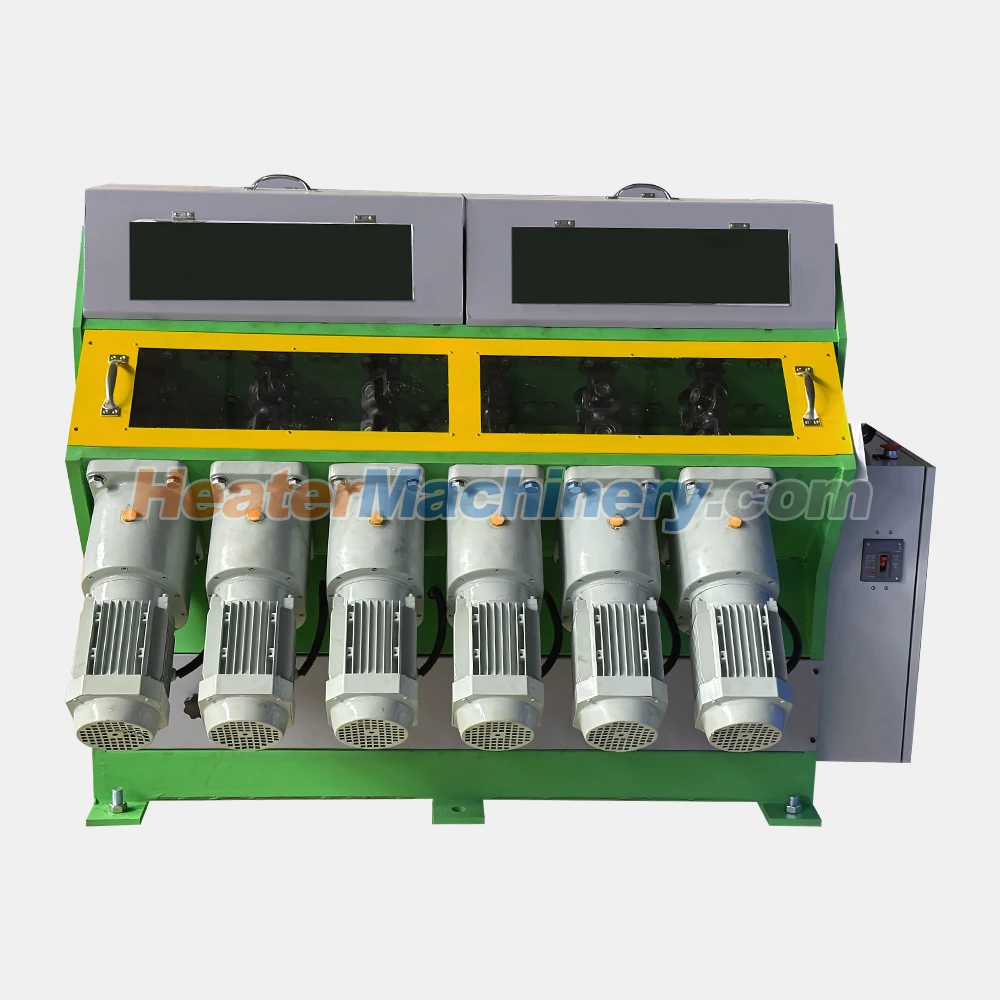

Heavy Duty Roll Reducing Machine

The HM-RRB2 Heavy Duty Roll Reducing Machine is an upgraded version of the HM-RRB1, featuring enhanced structural strength, increased torque, and greater force capacity. This machine is specifically designed for large-diameter tube compression, making it ideal for the production of mineral cables, tubular heaters, cartridge heaters, and oblate heating elements.

Features:

• High Power & Large Torque – Optimized for high-density, large-diameter, and long-length tubes.

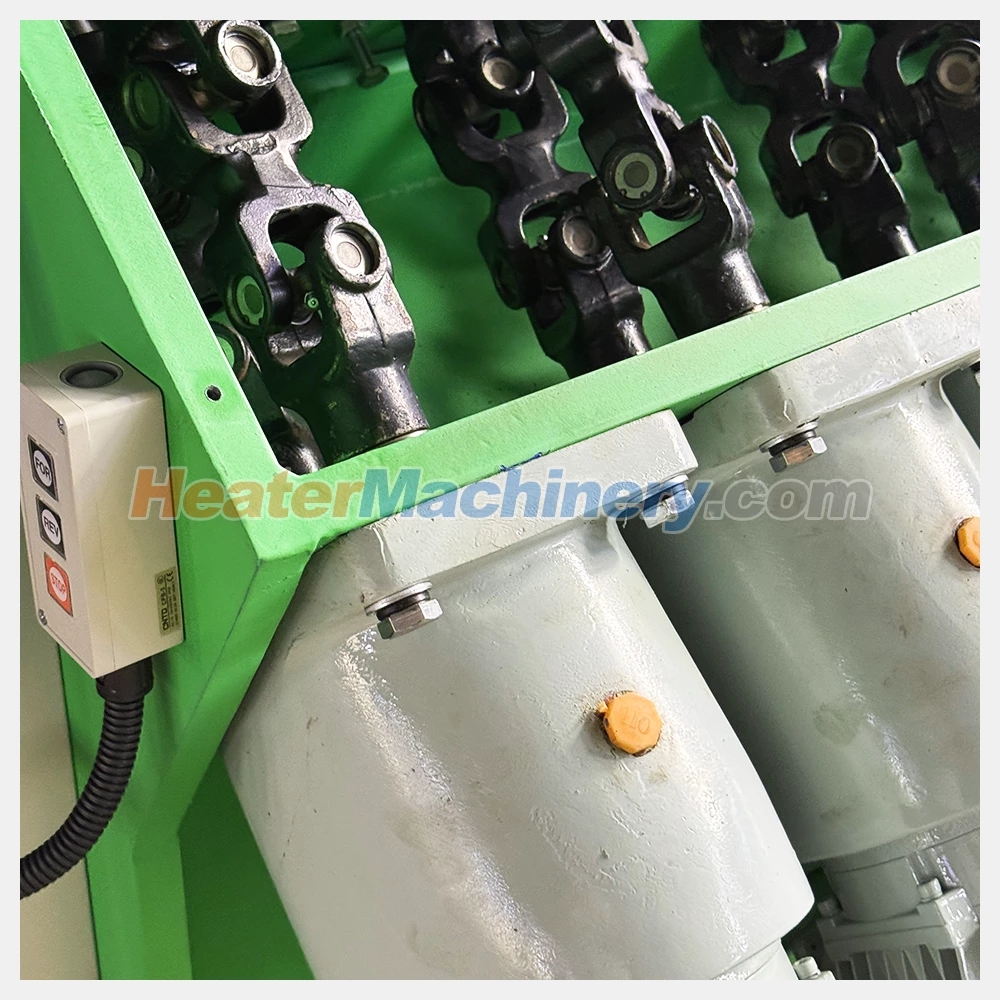

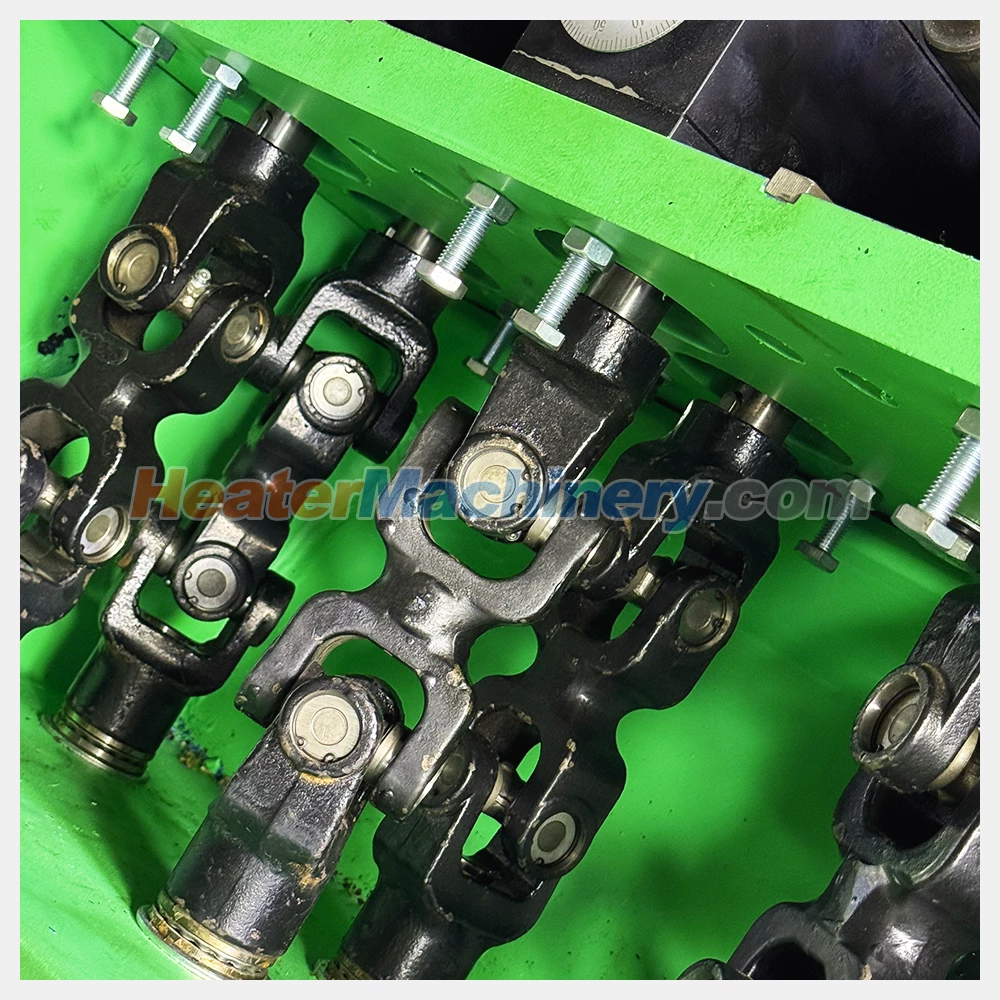

• Advanced Transmission System – Equipped with a double Cardan shaft and multi-gear reduction motor for smooth operation and motor protection.
• Versatile Roller Compatibility – Supports tungsten carbide rollers, high-speed rollers, and Cr12Mov rollers.
• Flexible Configuration – Available in whole or separate machine structures as per customer requirements.

Technical Specifications:

• Best Diameter Range: Φ3mm – Φ25mm
• Best Length Range: 30mm – 4000mm
• Roller Groups: 8-16 groups (12-group version available in stock, others customizable)

Applications:

• Round tube reduction – Suitable for tubular heaters, cartridge heaters, and cable heaters.
• Oblate tube reduction – Ideal for railway heaters, fryer heaters, and other industrial heating elements.
