HM-DM136

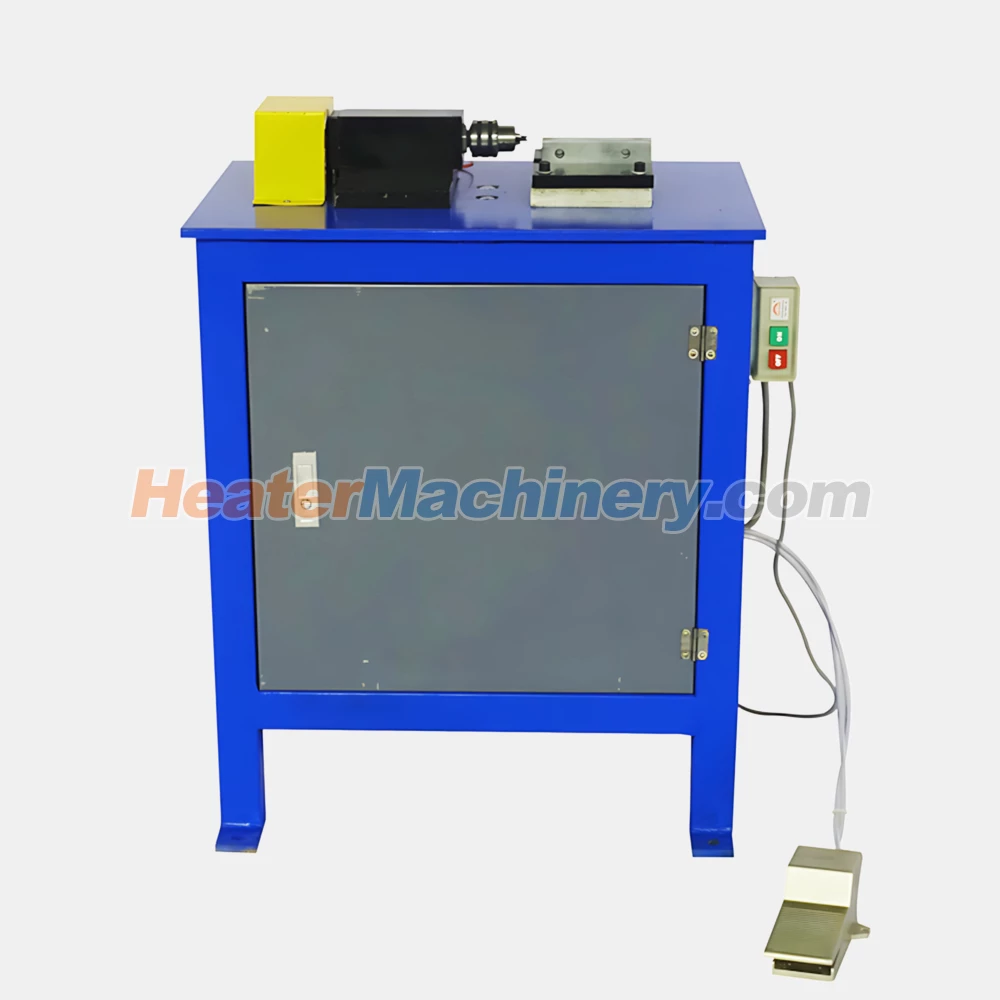

Manual Powder Digging Machine

HM-DM136 Manual Powder Digging Machine Part

How to use HM-DM136 Manual Powder Digging Machine

Specifications

Additional information

Model	HM-DM136
Min Length	50mm
Max Length	10000mm
Min Diameter	5mm
Max Diameter	30mm

Description

The HM-DM136 Manual Powder Digging Machine is a specialized tool designed for processing tubular products with extended lengths, larger dimensions, and diverse specifications in small-batch production. It efficiently removes MGO powder from heater tubes to prepare for the installation of ceramic components or similar accessories, ensuring precise post-shrinking adjustments.

Features

Core Functionality: Precisely digs MGO powder to accommodate ceramic or accessory installation.
Multi-Diameter Compatibility: Supports tube processing across varying diameters with interchangeable molds.
Ergonomic Design: Simplified operation and compact, visually refined structure.
Batch Flexibility: Optimized for low-volume, high-variability production needs.

Applications

Post-shrinking MGO powder removal in immersion tubular heaters.
Preparation of heater tubes for ceramic component integration.

Technical Specifications

Customizable Parameters:
- Heater diameter
- Tube wall thickness
- Pin diameter (for accessory alignment)
Power Supply: Configurable to 1-phase 220V or 3-phase 380V, 50Hz.

– These specifications are based on the “standard specifications” or “with certain optional equipment.”
– The above specifications are subject to change without notice for quality improvement, and the video, illustrations and photos on this page may differ slightly from the actual product in terms of color.
