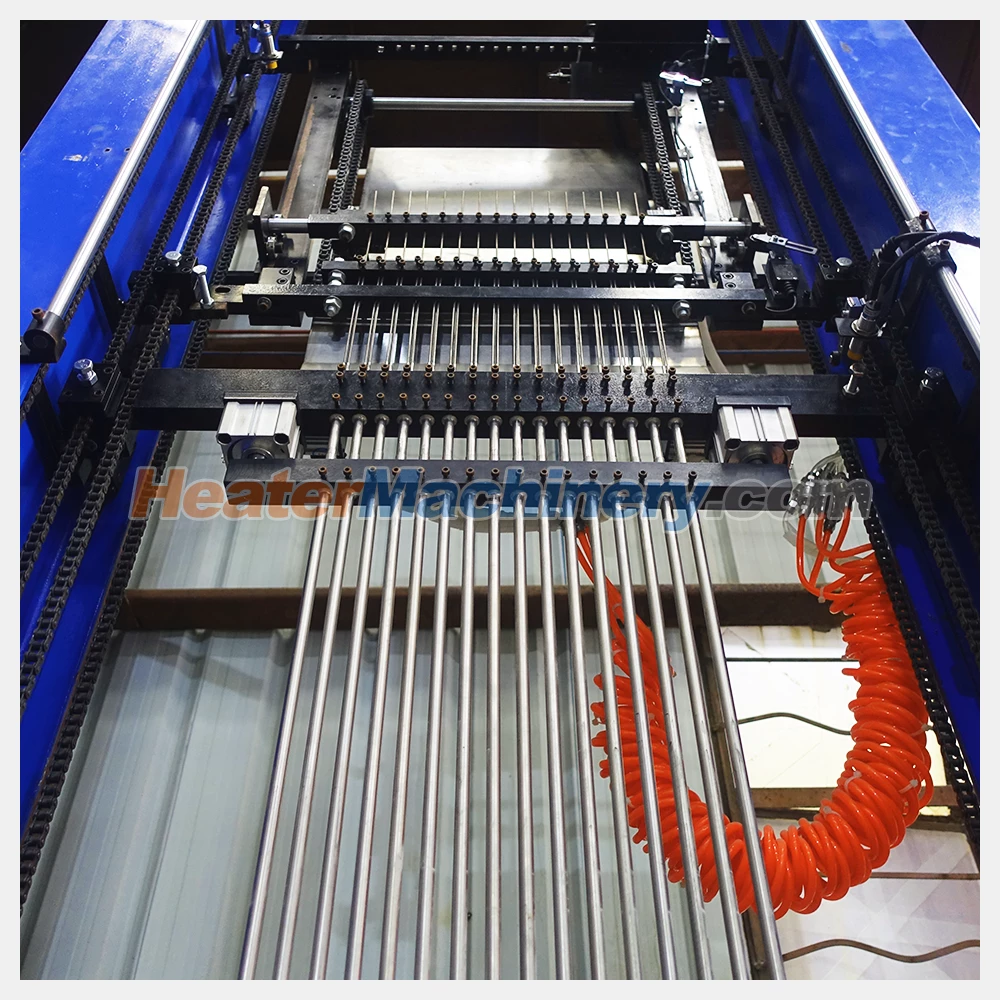

Single-End Cartridge Heater Filling Machine

The HM-MF118 Single-End Cartridge Heater Filling Machine is a precision-engineered solution designed for automated MGO powder filling into cartridge heater tubes. It ensures consistent density and alignment during the filling process, tailored for industrial heating element manufacturing.

Features

• Targeted Functionality: Specialized for MGO powder filling into single-end cartridge heater tubes.
• Adjustable Filling Length: Customizable filling depth to meet specific production requirements.
• Integrated Feed System:
  • Cylinder-controlled feed case for precise powder delivery.

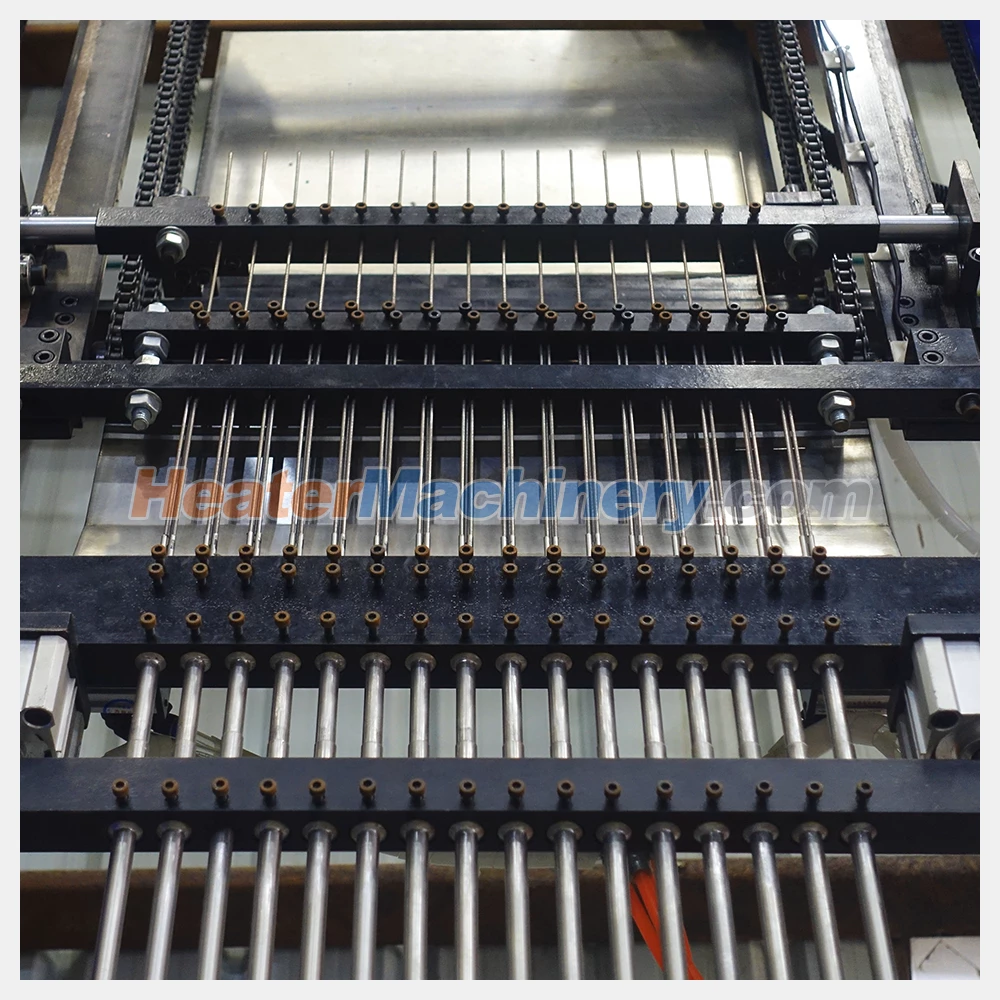

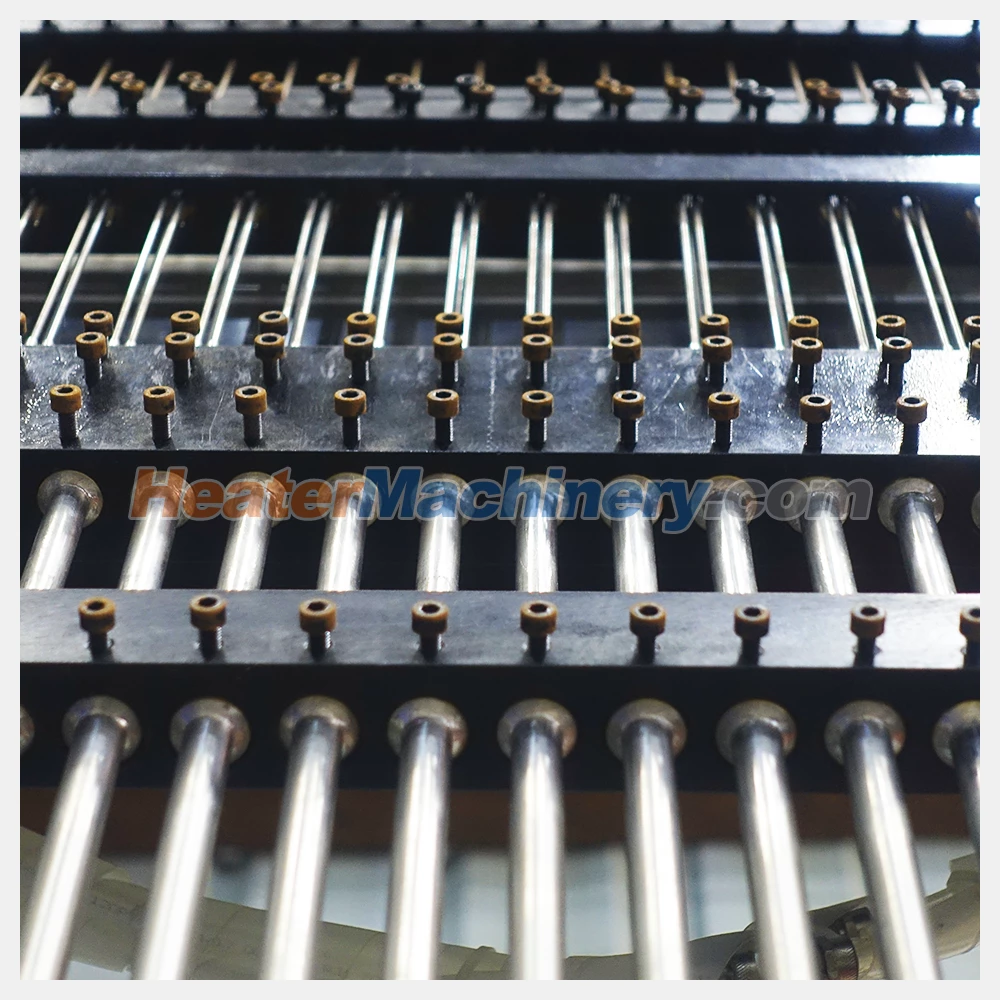

  • Tube fixation via bottom cup holder and top pipe cap, ensuring stability during operation.

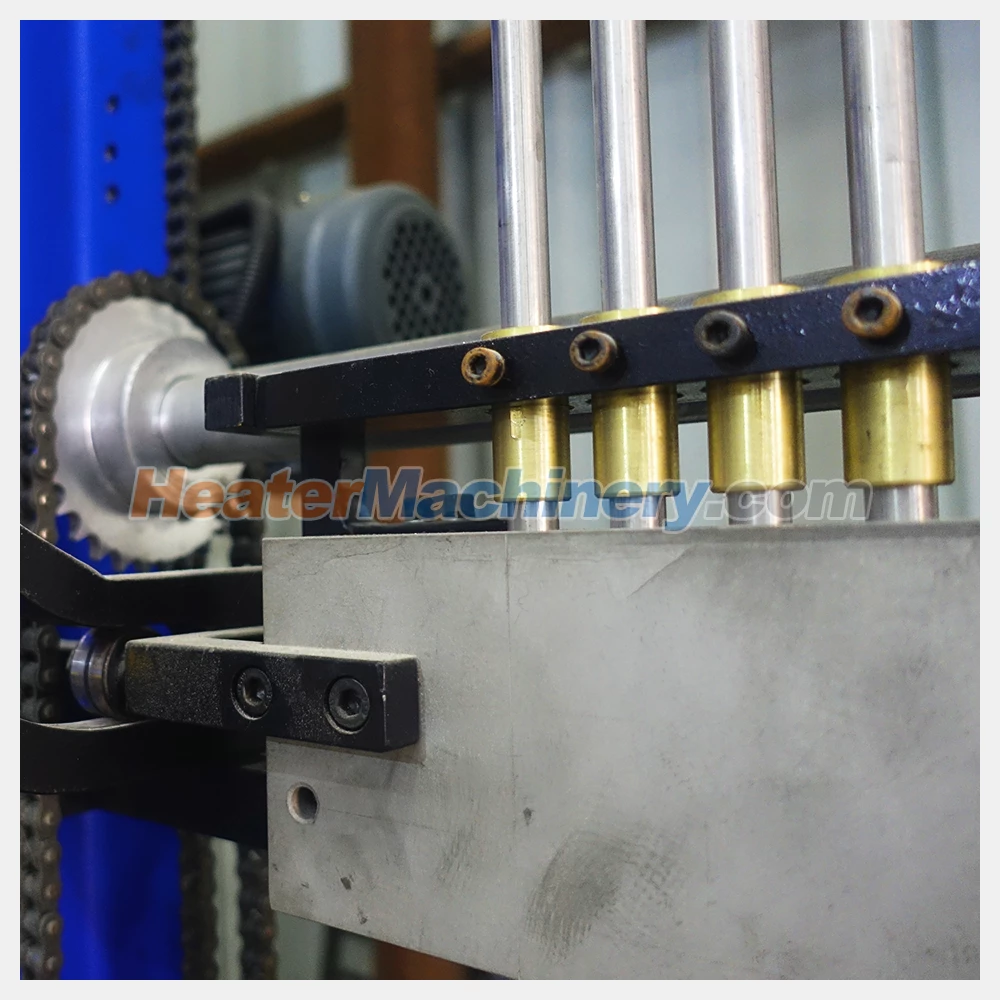

• Vibration Mechanism: Motor-driven eccentric vibratory system for uniform powder compaction.
• Semi-Automated Workflow: Combines manual resistance coil placement with automated filling for flexibility.

Operational Process

1. Preparation: Secure the tube using the cup holder and pipe cap.
2. Coil Placement: Manually hang the resistance coil within the tube.
3. Filling: Activate the MGO powder feed system with adjustable filling length.
4. Compaction: Engage the motor-driven vibration mechanism to ensure dense, even powder distribution.

Technical Specifications

• Compatibility: Designed for single-end cartridge heaters.
• Power Supply: Configurable to 1-phase 220V or 3-phase 380V, 50Hz.
• Customization: Adjustable parameters include tube diameter, wall thickness, and filling length.

Applications

• Industrial production of cartridge heaters requiring MGO insulation.
• High-density powder filling for heat-resistant tubular heating elements.
