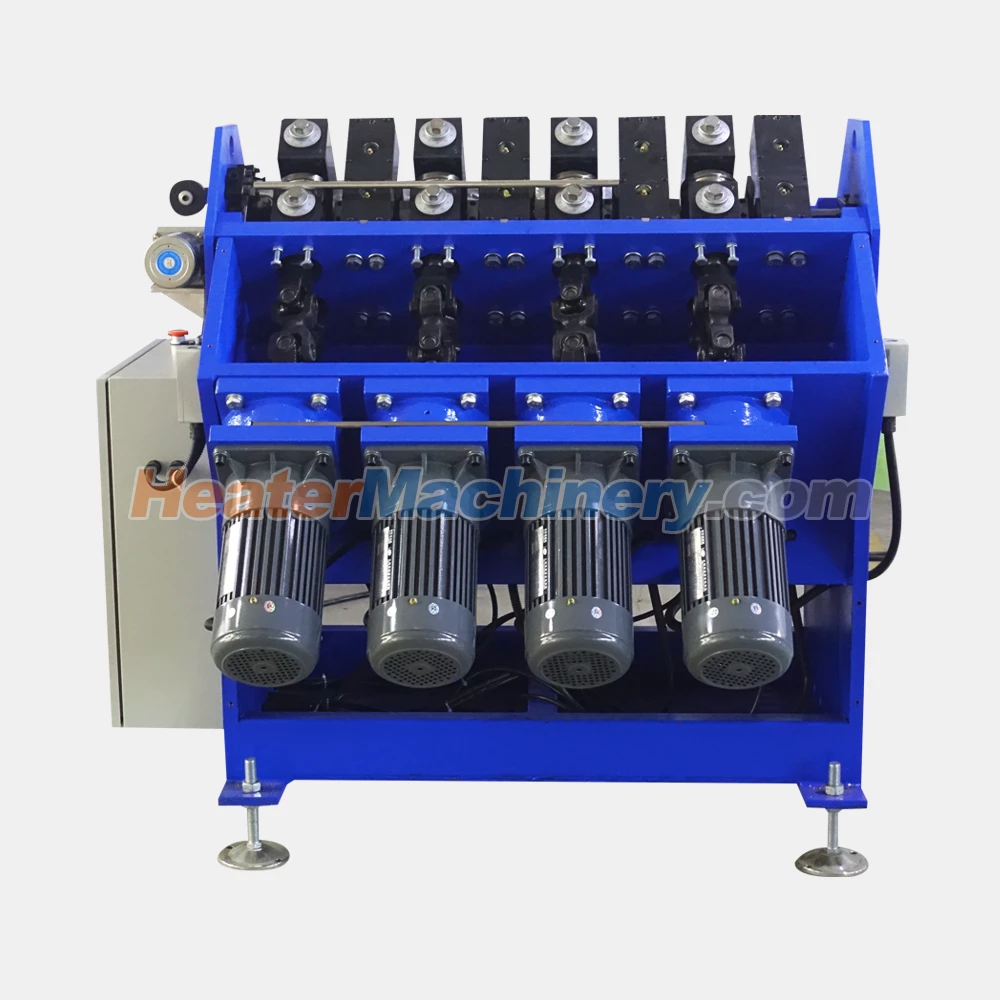

Small Size Tube Hot Runner Rolling Shrinking Machine

This Small Size Tube Hot Runner Rolling Shrinking Machine is specifically designed for shrinking small diameter hot runner heating tubes, suitable for small round heaters, small flat heaters, and other hot runner heating tube applications. The applicable tube diameter range for reducing is from 1.5mm to 10mm.

• Functions: Shrinking small round tubes, flat tubes, etc.
• Machine Features: Compact structure, high precision, suitable for small size heating elements such as small round heaters, small flat heaters, and others.
• Machine Structure: Whole/separate machine (customized according to customer requirements).

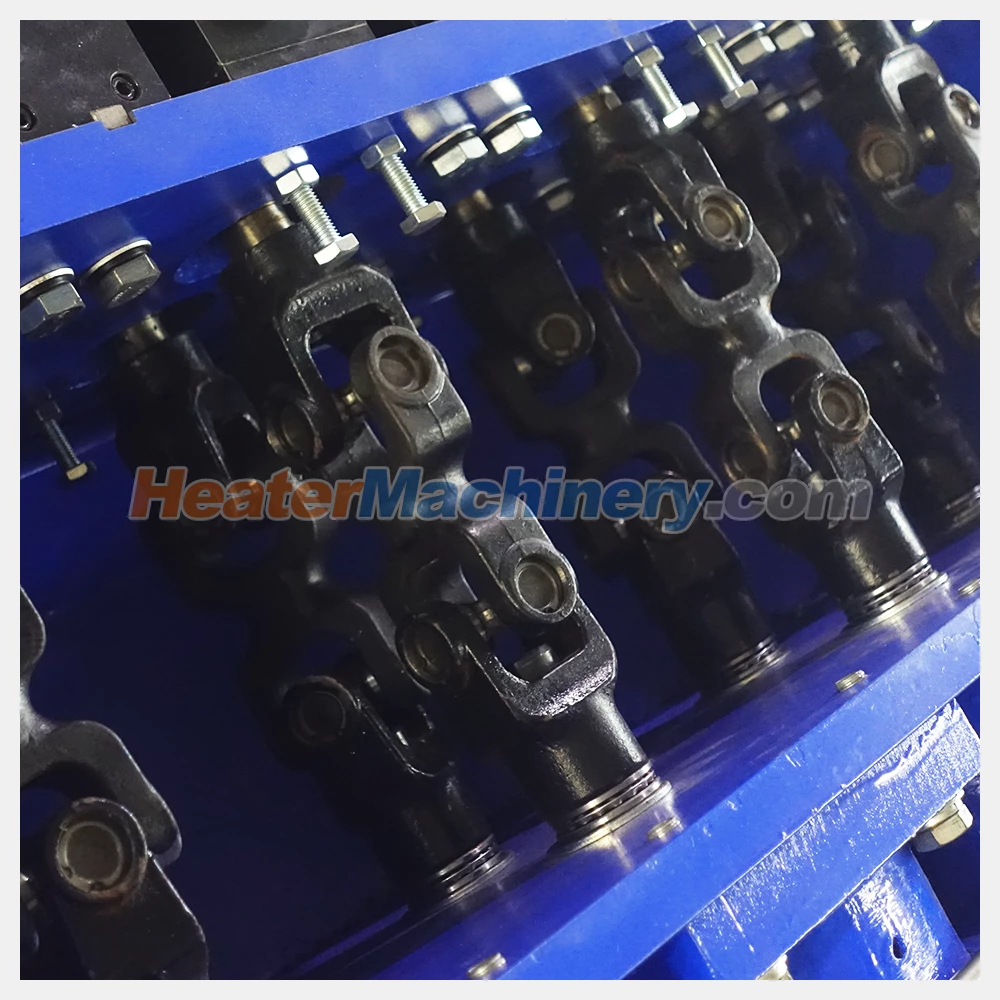

• Transmission Structure: Cardan shaft drive.
• Accessories: Can be equipped with tungsten carbide rollers, high-speed rollers, and Cr12Mov rollers.

Technical Parameters:

• Optimal Reduction Diameter: 1.5-10mm;
• Optimal Reduction Length: 30-2000mm;
• Machine Structure: Whole/separate machine (customized according to customer requirements);
• Transmission Structure: Cardan shaft drive;
• Available Group Settings: 8-16 groups. Other group configurations need to be customized.

Applications:
Suitable for small size round, square, flat, and elliptical heaters, such as hot runner heaters.

Information Required for Ordering:

• Electrical supply requirements (e.g., 220V single-phase, 380V three-phase, 50Hz).
• Tube diameter before and after reduction, e.g., Φ3.0-Φ2.8mm;
• Length before reduction;
