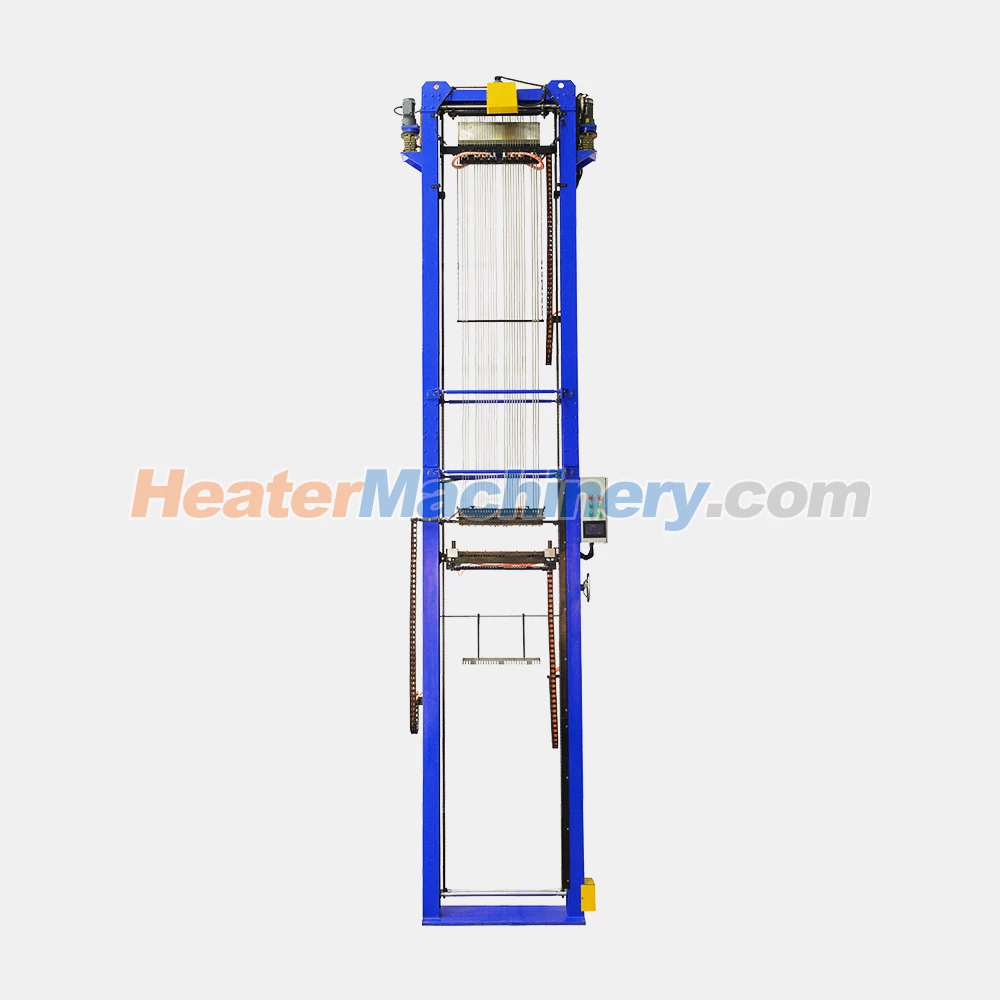

Triple Guide 48 Station MGO Filling Machine

The Triple Guide 48 Station MGO Filling Machine HM-MF113 is an upgraded version of the HM-MF112 Double Guide MGO Filling Machine. The key distinction between the double guide and triple guide versions is that the Triple Guide 48 Station MGO Filling Machine can accommodate different diameters on a single machine. This allows users to select the required diameter(s) for filling—whether it’s one, two, or more diameters simultaneously—while non-required diameters remain inactive during the process.

This machine is ideal for filling tubular heaters and is highly recommended for applications requiring multiple diameter options.

• Functions:
  • Fills MGO powder into tubular heaters.
• Applications:
  • Suitable for tubular heaters and short heating elements that require MGO powder filling.
• Machine Features:

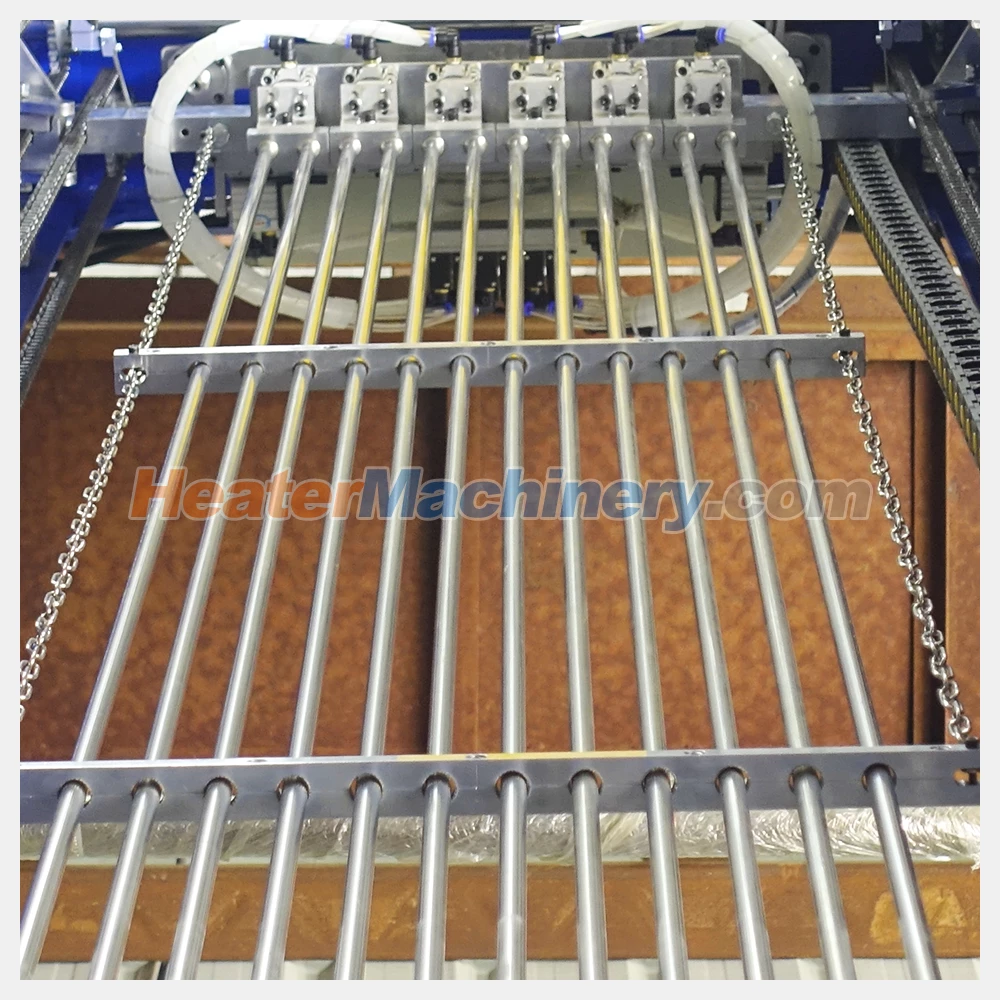

  • Can be configured with two or three guide tubes for different diameters (with the ability to fill one or more diameters at a time).
  • Operates centrally, making it easy to use.
  • Adjustable filling length (300-8000mm) to accommodate various heating element lengths.
  • Customizable station configurations: typically 48 stations, but can be adjusted to 6, 8, 10, 12, 16, 24, 36, or more stations depending on customer requirements.
  • Suitable for filling round tubes.
• Technical Parameters:
  • Max Filling Length: Up to 8000mm.
  • Max Filling Diameter: Φ28.5mm.
  • Stations: 6-48 stations, customizable.
  • Machine Control: PLC and Human-Machine Interface (HMI/touch screen) for easy operation.

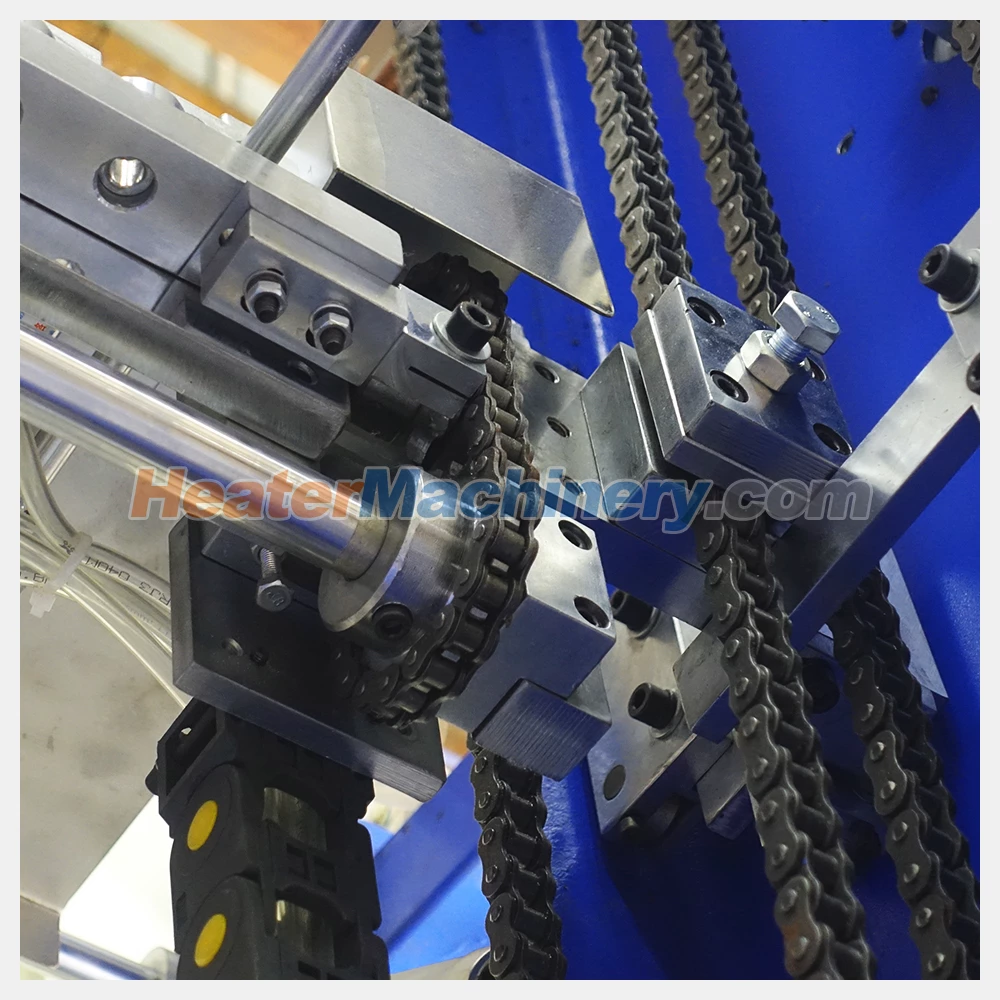

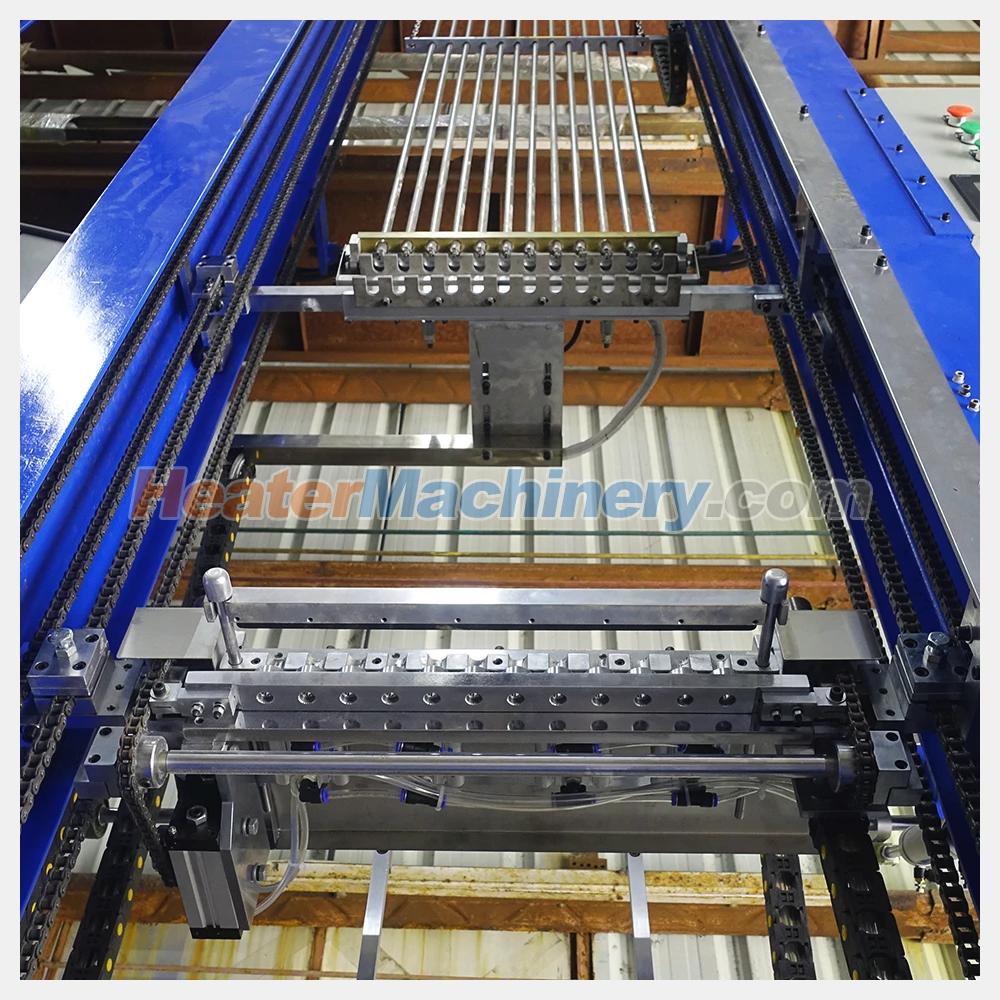

  • Guiding System: Includes guide rails and a rotary clamping mechanism.
  • Filling Mechanism: Features a helical nozzle inside the guide tubes, with motorized adjustment for mandrel exposure.
